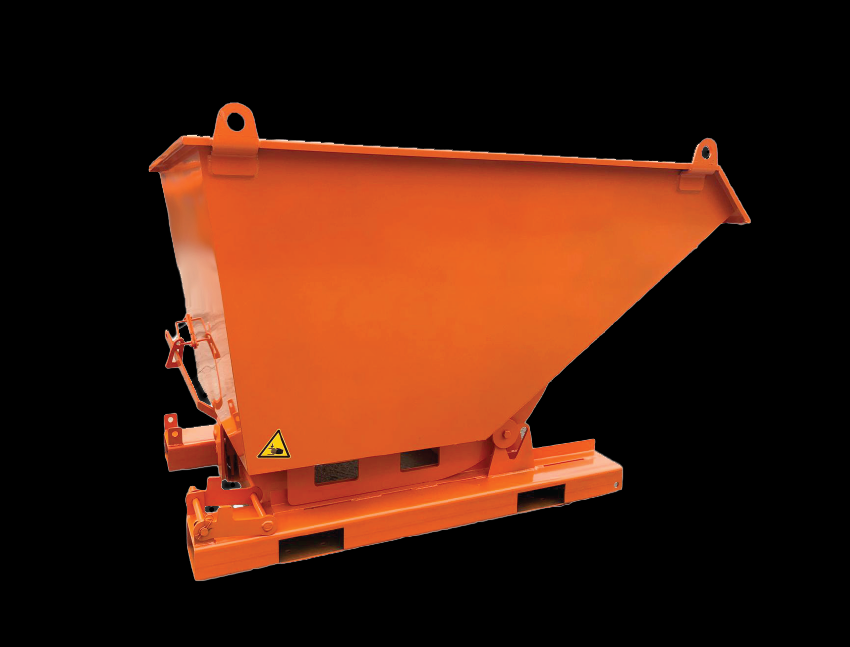

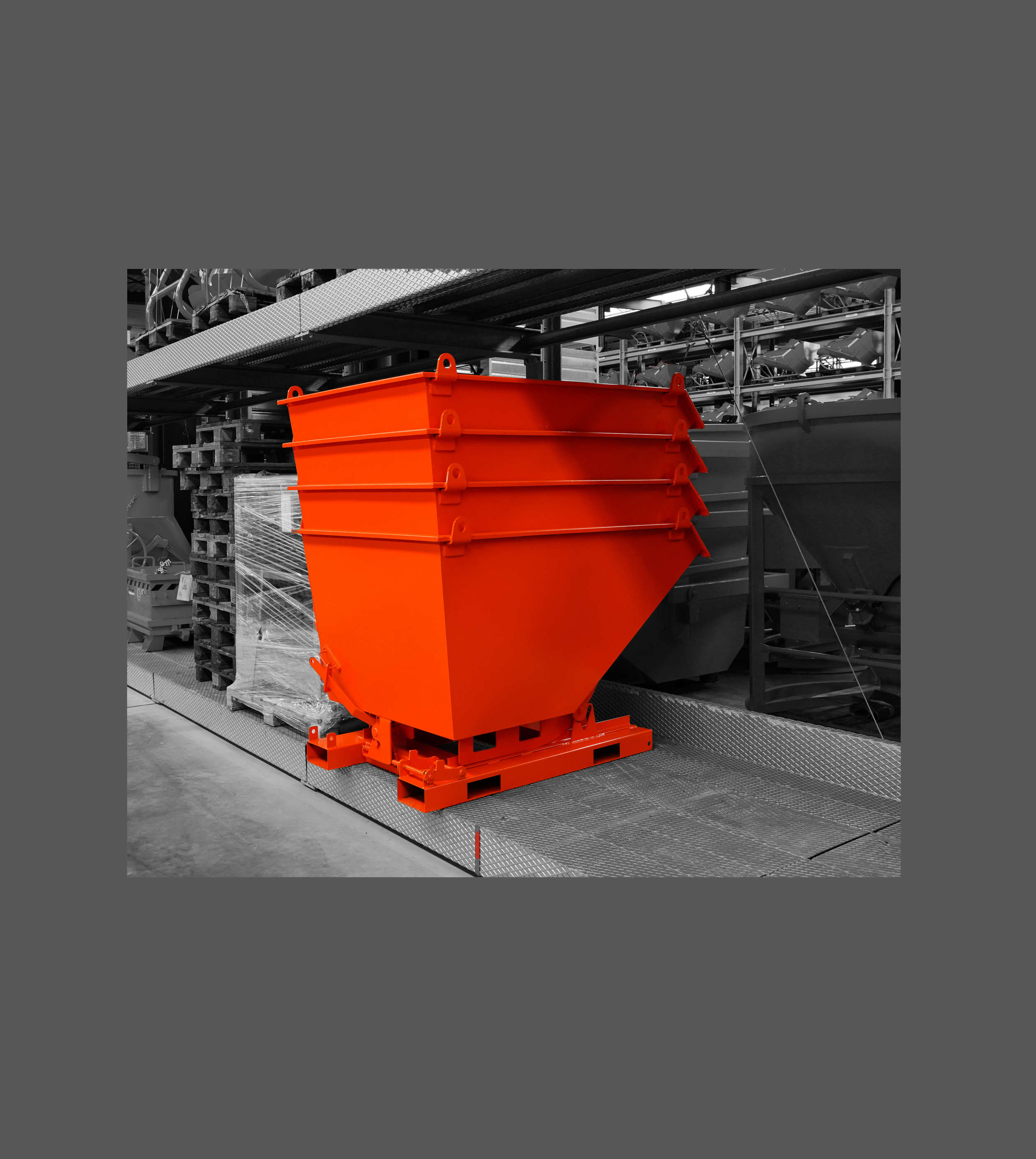

Forklift Hopper Model 2012
Our Forklift Hopper 2012 is the intersection of all of our other hoppers. It has a standard shape so it dumps out easily. It’s taller and narrower than some of the versions. But at the price point you can get a number of great options with it. The base can be accessed from three sides and dump out forward, or to the sides. Carriage bolt holes are built into every example so castors are easily added. Crane lifting eyes are also available.
The properties
load capacity up to 1500 kg (3300 lbs)
Capacity: Various Sizes from 300 liters to 2250 liters (0.39 to 2.9 yards)
Self-tipper: Can be tilted at any height by cable pull from the driver's seat
chain safety device against accidental slipping
Powder coating in Eichinger orange (pure orange RAL2004)
Delivery with declaration of conformity and GS mark from TÜV
On request also available in many other variants, e.g. as chip tipping container, flat tipper, mini tipper, sludge dewatering container
The construction

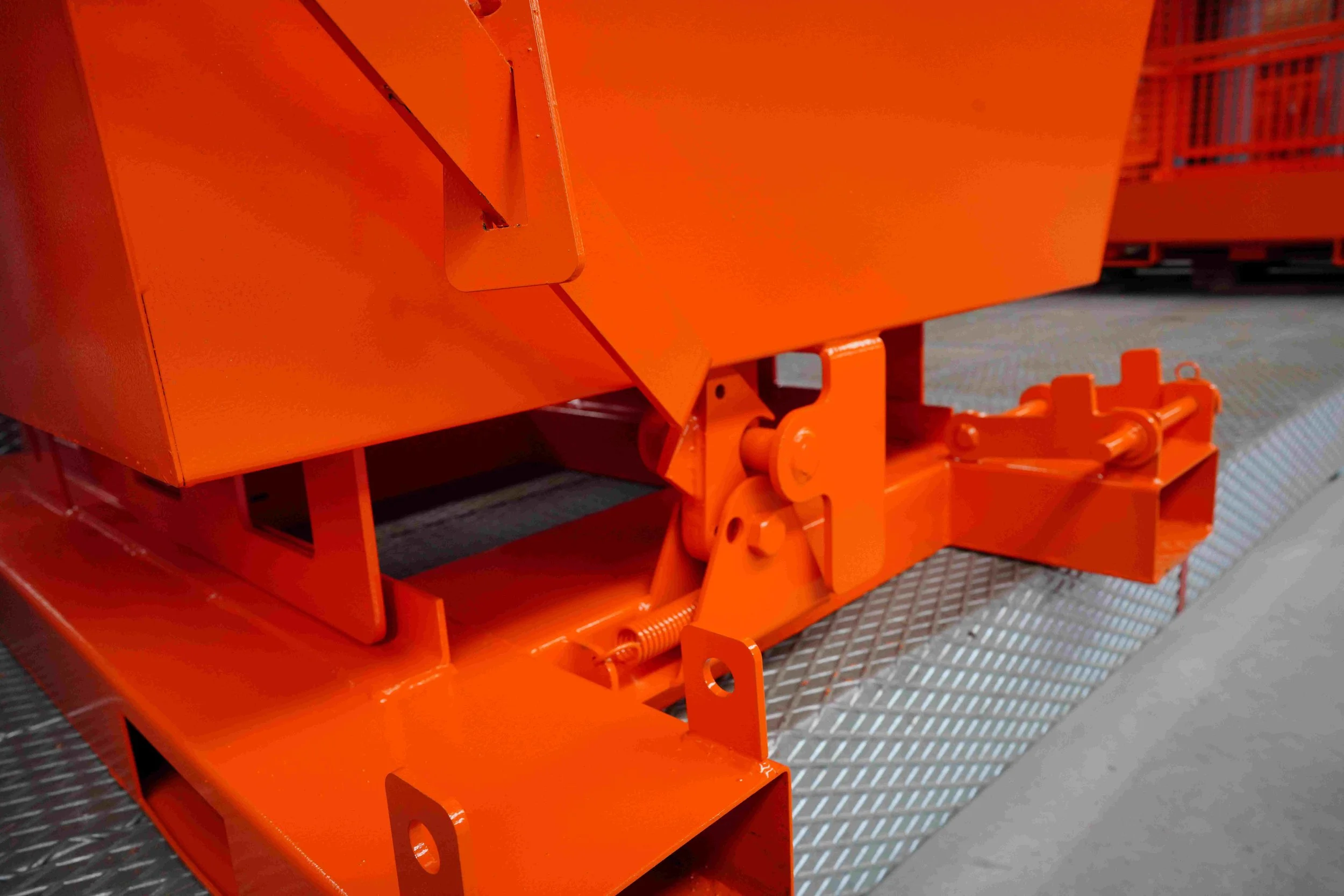

The trough of the tipping bins is made of 3 mm sheet steel and has a stable all-round edge. The low height of the tipper bins means that it has an ideal loading height for all types of materials in the various sizes including rubble. The optimal tipping angle guarantees complete emptying at all fill levels and material types. The base frame is very stable due to being heavy duty and has entry pockets for the forklift tines, or Crane Lugs as an option. To protect the tipping bins from accidentally slipping off the tines, the side tipping container has a heavy duty chain lock. A durable powder coating protects the surface from corrosion while on site.
The Applications

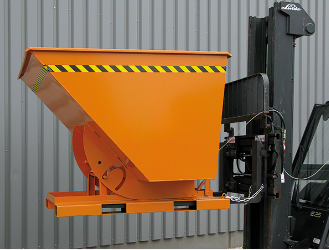

The low height of the tipping bins makes it ideal for use with machines with low discharge heights. You drive into the drive-in pockets from behind with the forklift tines. Please check in advance whether your tines and the drive-in pocket dimensions are compatible. As soon as you have positioned the tipping bins on the tines, secure the container with the chain provided to prevent it from slipping off the tines. Then take the end of the release cable to the driver's seat. At your destination, drive the tipping container to the desired height and pull on the wire rope. The tipping container tips forwards automatically and will have emptied out all of the materials, storage, or rubble. It can be returned to the starting position by lowering it to the ground after the materials are emptied. . To make it easier to set upright again, the tipping bin has an additional protruding profile at the bottom of the dumping edge. This greatly simplifies handling and the quality protects the trough from deformation. You can even option them with wheels so them can be pushed for operations like cleaning. Disposal and the transport of waste by fork or foot are easy operations with this unit. With the varieties of capacities to suit any range or workplace, we have the bin designed for you.
additional equipment
Optionally available:
2 swivel and 2 fixed castors
push handle on the tipping bins
lid, galvanized, multi-part waste bins that can separate heavy waste from liquid
hydraulic tipping device
tipping bins brake
side wall attachment
crane lugs
trailer hitch
powder-coated in RAL special color
hot-dip galvanized version
stainless steel version
oil- and watertight welding
Find Time when You Use Our Bin
The transport of waste and materials is never ending. When we have supplied you with our bin, we make that transfer process easy with our variety of models. We have the applications to make leaving the hard work in the past easy. if you need to find and information, we are here at sales@cranegear.net
Forklift Attachments
Eichinger Forklift Attachments have been manufactured in Germany for 122 years by the Eichinger family. The quality is what you would expect from the Germans. Automation is widely used which enables speed and repeatable quality. Our innovations keep your people in the seat of the forklift and safe as much as possible. If it’s time you had the best in forklift attachments, we are ready to help out with a quote and order today.
